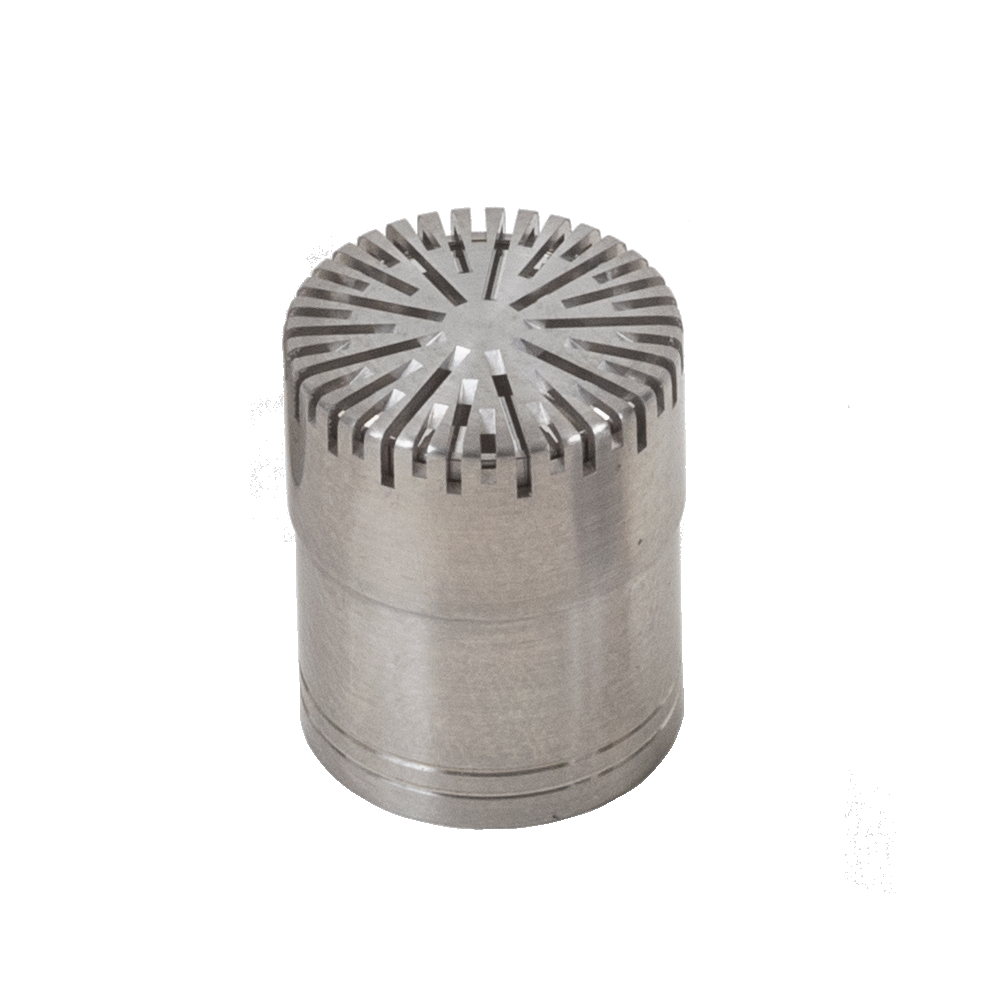

Nor1227 Free-field Microphone

Low-noise free-field measurement microphone.

Overview

The Nor1227 is a precision 1/2" free-field condenser microphone engineered for exceptionally low self-noise performance, making it the ideal choice for measuring quiet environments and achieving maximum dynamic range. With a self-noise level below 16 dB(A) and a dynamic range exceeding 110 dB, the Nor1227 enables accurate measurement of low-level sound sources that would be masked by the inherent …

Key Features

  • Ultra-low self-noise < 16 dB(A) for quiet environment measurements
  • Dynamic range exceeding 110 dB for wide-range applications
  • IEC 61094-4 Class 1 free-field accuracy
  • 1/2" diameter compatible with standard Norsonic preamplifiers
  • Optimized diaphragm design for minimum thermal noise
  • 200 V externally polarized for maximum stability
  • Individual calibration with traceable sensitivity certificate
  • TEDS (IEEE 1451.4) compatible for automatic identification

Applications

  • Background noise measurement in recording studios and concert halls
  • Anechoic chamber and hemi-anechoic chamber measurements
  • NC/RC noise criteria verification for premium building projects
  • Clean room and hospital noise level assessment
  • Laboratory sound power measurements requiring low noise floor
  • Quiet room qualification for automotive NVH testing

Technical Specifications

  • Size: 1/2"
  • Self-noise: < 16 dB(A)
  • Dynamic Range: > 110 dB

Frequently Asked Questions

  • When is low self-noise important?
    Low self-noise is critical when measuring quiet environments such as recording studios, anechoic chambers, hospital wards, or residential background noise levels below 30 dB(A). If the microphone self-noise is close to the level being measured, it will contaminate the result. The Nor1227's self-noise below 16 dB(A) ensures accurate measurements of even the quietest environments.
  • What is the difference between the Nor1225 and Nor1227?
    The Nor1227 is optimized for low self-noise (< 16 dB(A)) and extended dynamic range (> 110 dB), making it ideal for quiet environment measurements. The Nor1225 is the standard general-purpose free-field microphone with higher sensitivity (50 mV/Pa), best suited for typical environmental and industrial noise levels. Choose the Nor1227 when measuring levels below 30 dB(A).
  • Can the Nor1227 also measure high sound levels?
    Yes, the Nor1227's dynamic range exceeds 110 dB, so while it excels at low-level measurements, it can also handle typical environmental and moderate industrial noise levels. However, for very high sound pressure levels exceeding 140 dB, the Nor1228 with its higher maximum level capability is the better choice.

Application Guide

The Nor1227 Free-field Microphone belongs to the Norsonic Microphones range. See the Microphones application guide for system configuration, compatible accessories, and applicable measurement standards.

Related Norsonic Products

Why Norsonic?

  • Manufactured in Norway — decades of acoustic measurement heritage; all instruments designed and built in Norsonic AS, Lierskogen, Norway
  • IEC 61672 Class 1 — highest accuracy class for professional and regulatory acoustic measurement
  • International type approvals — PTB (Germany) and LNE (France); accepted by environmental authorities across the region
  • 3-year manufacturer warranty — covers parts and labour; Norsonic Asia authorized service center support throughout the region
  • Open data formats — .nox files work with NorReview and can be exported to CSV, Excel, and third-party analysis software

Calibration and Compliance

  • All Norsonic instruments require periodic IEC 61672-3 calibration — Norsonic Asia provides factory-authorized calibration services with full DANAK-traceable certificates
  • Calibration interval: 1 year for ISO 17025 accredited laboratories; 2 years for field instruments in non-accredited applications
  • Field calibration check: use an IEC 60942 Class 1 sound calibrator (94 dB or 114 dB) before and after each measurement session
  • Loaner instruments available during calibration to minimize project downtime — contact Norsonic Asia for loaner availability

Availability & Regional Support

Available from Norsonic Asia — the factory-authorized distributor for ASEAN, GCC, and South Asia. Instrument supply includes 3-year manufacturer warranty, factory-authorized calibration services, operator training, and after-sales technical support.

  • Typical lead time: 3–6 weeks from order confirmation (ex-factory Norway)
  • Countries served: Singapore, Malaysia, Thailand, Vietnam, Philippines, Indonesia, UAE, Saudi Arabia, Qatar, Kuwait, India, Bangladesh, Sri Lanka, and more
  • Technical support: English and Arabic; response within 1 business day
