Acoustic Camera

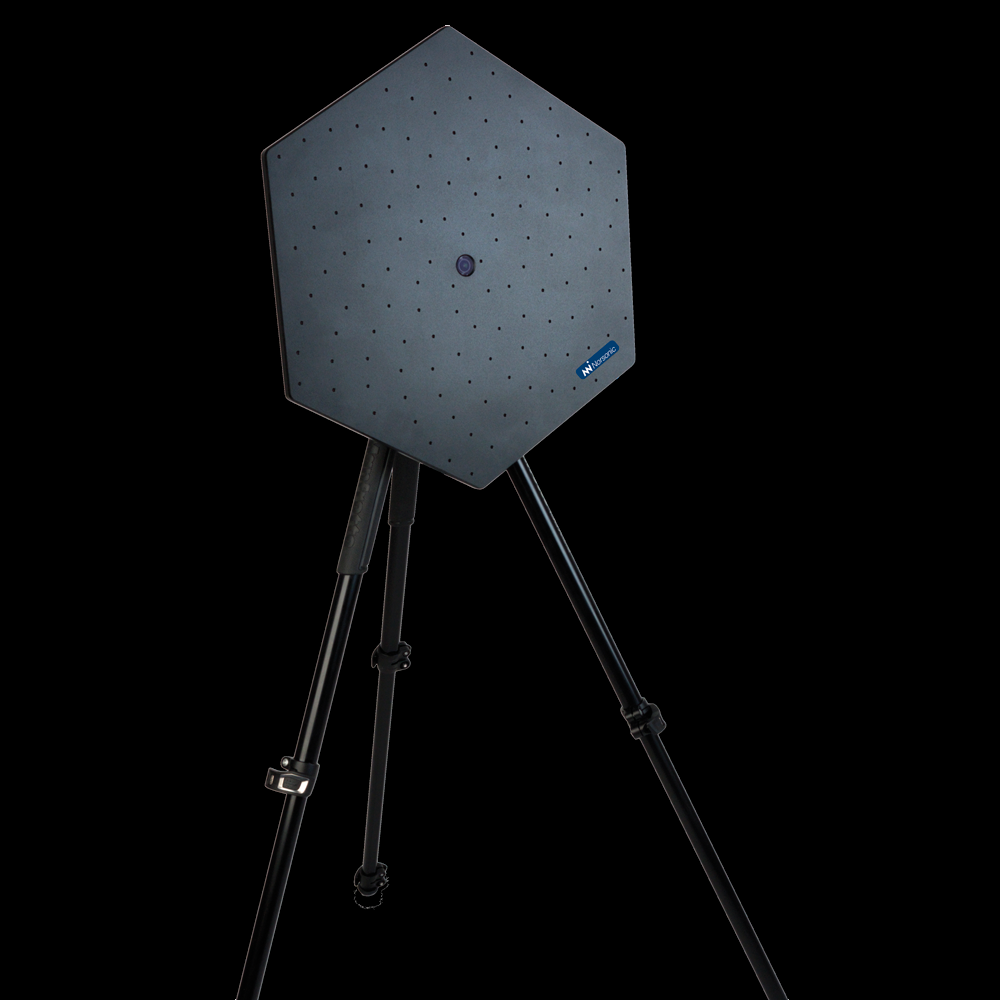

Nor848B Acoustic Camera

Nor848B modular acoustic camera with Hextile array technology for real-time sound source localization and visualization in industrial, automotive, and building applications.

Overview

The Norsonic Nor848B acoustic camera is a modular beamforming array system built in a solid aluminum housing that enables engineers to visualize, localize, and quantify noise sources in real time. Based on the innovative Hextile modular array technology, the Nor848B can be configured from a single portable tile to a full 384-microphone Multitile array, giving acoustics professionals the flexibilit…

Key Features

  • Modular design from 1 to 384 microphones for application-specific resolution
  • Real-time sound source visualization overlaid on video image
  • Solid aluminum housing for durability and rigidity in demanding field and laboratory environments
  • High-performance optical video camera with 2592 × 1944 resolution for sharp source overlay images
  • Software-based virtual microphone: listen from any selected direction with suppression of all other sources
  • Virtual microphone available in both real-time analysis and post-processing of recordings
  • RPM and order tracking for rotating machinery analysis and identification of speed-dependent noise sources
  • Raw data recording for full post-processing flexibility and detailed analysis

Applications

  • Automotive NVH: pass-by noise, interior noise source identification
  • Industrial machinery noise source localization and troubleshooting
  • Wind turbine and generator noise mapping
  • Building facade sound transmission loss investigation
  • HVAC system noise source identification
  • Transformer and electrical equipment noise analysis

Technical Specifications

  • Model: Nor848B
  • Housing: Solid aluminum
  • Configuration: Modular Hextile system (1 to 384 microphones)
  • Array Options: Hextile (1m), Multitile (up to 4m), custom configurations
  • Microphone Type: Digital MEMS microphones, Class 2 compliant
  • Frequency Range: 30 Hz – 24 kHz
  • Dynamic Range: > 110 dB
  • Spatial Resolution: Frequency dependent, < 3° at 1 kHz
  • Frame Rate: Real-time, up to 50 fps
  • Beamforming: Delay-and-sum, advanced MVDR algorithms
  • Video Camera: High-performance optical camera, 2592 × 1944 resolution
  • Virtual Microphone: Software-based; directional listening with source suppression; available in real-time and post-processing

Frequently Asked Questions

  • What is the difference between Hextile and Multitile configurations?
    Hextile offers a lightweight, portable single-array solution weighing just 2 kg, ideal for field troubleshooting and on-site inspections. Multitile combines multiple arrays for higher spatial resolution and extended low-frequency capability down to 50 Hz, making it better suited for detailed laboratory NVH analysis and large industrial equipment.
  • Can the acoustic camera measure low frequencies?
    Yes. The Multitile LF mode extends the measurement range down to 50 Hz, enabling identification of low-frequency noise sources from large industrial machinery, transformers, and HVAC systems commonly found in GCC industrial facilities.
  • Is real-time visualization available?
    Yes. The Nor848B provides real-time color-mapped sound source visualization overlaid on a live video feed at up to 50 frames per second. This enables immediate identification of noise sources during on-site walkthroughs and troubleshooting sessions.

Application Guide

The Nor848B Acoustic Camera belongs to the Norsonic Acoustic Camera range. See the Acoustic Camera application guide for system configuration, compatible accessories, and applicable measurement standards.

Related Norsonic Products

Why Norsonic?

  • Manufactured in Norway — decades of acoustic measurement heritage; all instruments designed and built in Norsonic AS, Lierskogen, Norway
  • IEC 61672 Class 1 — highest accuracy class for professional and regulatory acoustic measurement
  • International type approvals — PTB (Germany) and LNE (France); accepted by environmental authorities across the region
  • 3-year manufacturer warranty — covers parts and labour; Norsonic Asia authorized service center support throughout the region
  • Open data formats — .nox files work with NorReview and can be exported to CSV, Excel, and third-party analysis software

Calibration and Compliance

  • All Norsonic instruments require periodic IEC 61672-3 calibration — Norsonic Asia provides factory-authorized calibration services with full DANAK-traceable certificates
  • Calibration interval: 1 year for ISO 17025 accredited laboratories; 2 years for field instruments in non-accredited applications
  • Field calibration check: use an IEC 60942 Class 1 sound calibrator (94 dB or 114 dB) before and after each measurement session
  • Loaner instruments available during calibration to minimize project downtime — contact Norsonic Asia for loaner availability

Availability & Regional Support

Available from Norsonic Asia — the factory-authorized distributor for ASEAN, GCC, and South Asia. Instrument supply includes 3-year manufacturer warranty, factory-authorized calibration services, operator training, and after-sales technical support.

  • Typical lead time: 3–6 weeks from order confirmation (ex-factory Norway)
  • Countries served: Singapore, Malaysia, Thailand, Vietnam, Philippines, Indonesia, UAE, Saudi Arabia, Qatar, Kuwait, India, Bangladesh, Sri Lanka, and more
  • Technical support: English and Arabic; response within 1 business day
