Sound Intensity

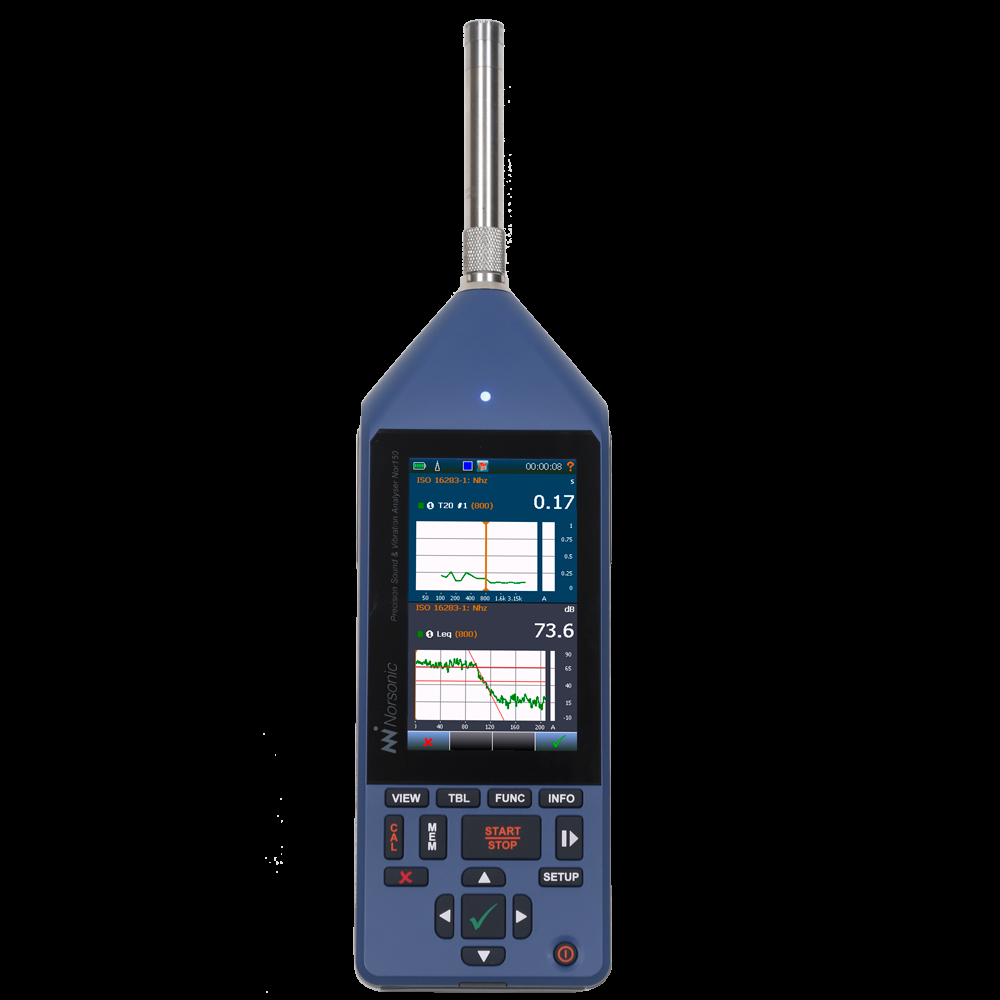

Nor150 Sound and Vibration Analyser

Nor150 dual-channel Class 1 sound and vibration analyser for building acoustics, room acoustics, sound intensity, and occupational measurements per ISO standards.

Overview

The Nor150 is a research-grade dual-channel sound and vibration analyser that combines Class 1 noise measurement, vibration analysis, and sound intensity capability in a single handheld instrument. Compliant with IEC 61672-1, IEC 61260-1, and ISO 8041, the Nor150 addresses the full spectrum of acoustics and vibration measurement needs from building acoustics testing to industrial machinery diagnos…

Key Features

  • Dual-channel operation for building acoustics level difference measurements
  • IEC 61672-1 Class 1 and ISO 8041 vibration measurement in one instrument
  • Real-time FFT analysis with up to 6400 lines resolution
  • Reverberation time measurement: T20, T30, EDT per ISO 3382
  • Sound intensity capability with optional probe kit per ISO 9614
  • Integrated 4G LTE and WLAN for remote monitoring applications
  • NorCloud integration for multi-site fleet management
  • 1/12 octave analysis for detailed frequency investigation

Applications

  • Building acoustics: airborne and impact sound insulation per ISO 16283
  • Room acoustics: reverberation time and speech intelligibility per ISO 3382
  • Sound intensity measurements for sound power per ISO 9614
  • Occupational noise and hand-arm vibration assessment per ISO 9612/5349
  • Environmental noise monitoring per ISO 1996
  • Machine vibration diagnostics and condition monitoring

Technical Specifications

  • Model: Nor150
  • Standards: IEC 61672-1 Class 1, IEC 61260-1 Class 1, ISO 8041
  • Type Approvals: PTB, LNE type approved
  • Channels: 1 or 2 simultaneous channels
  • Frequency Range: 0.5 Hz – 20 kHz (acoustic), 0.5 Hz – 16 kHz (vibration)
  • Dynamic Range: > 120 dB (single range)
  • Measurement Range: 16 dB(A) to 140 dB(A)
  • Frequency Weighting: A, C, Z (simultaneous)
  • Time Weighting: F, S, I (simultaneous)
  • FFT Analysis: Up to 6400 lines, real-time
  • Octave Filters: 1/1, 1/3, and 1/12 octave, real-time
  • Reverberation Time: T20, T30, EDT per ISO 3382

Frequently Asked Questions

  • What makes the Nor150 different from the Nor145?
    The Nor150 adds dual-channel capability, sound intensity measurement, vibration analysis per ISO 8041, and real-time FFT with up to 6400 lines resolution. It is designed for research-grade building acoustics, sound intensity, and vibration applications beyond basic noise measurement.

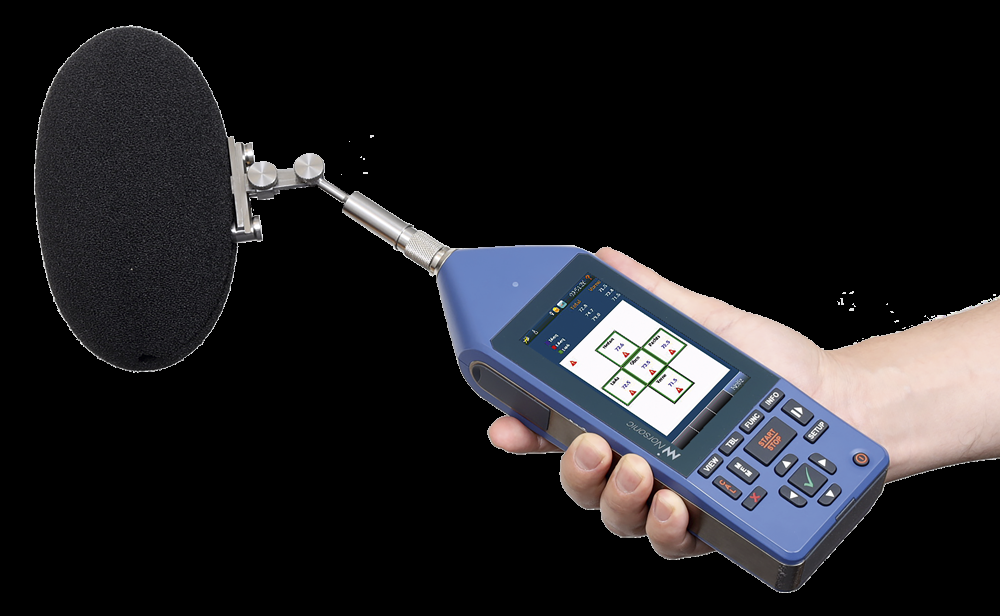

  • Can the Nor150 perform sound intensity measurements?
    Yes. When paired with the Nor1290 sound intensity probe kit, the Nor150 enables ISO 9614-compliant sound power determination. The dual-channel architecture provides the phase-matched measurement capability required for accurate intensity calculations.
  • Is the Nor150 suitable for building acoustics testing?
    Absolutely. The Nor150 supports airborne sound insulation testing per ISO 16283-1, impact sound insulation per ISO 16283-2, and reverberation time measurement per ISO 3382. Its dual-channel operation enables simultaneous source and receive room measurements for efficient on-site testing.

Application Guide

The Nor150 Sound and Vibration Analyser belongs to the Norsonic Sound Intensity range. See the Sound Intensity application guide for system configuration, compatible accessories, and applicable measurement standards.

Related Norsonic Products

Why Norsonic?

  • Manufactured in Norway — decades of acoustic measurement heritage; all instruments designed and built in Norsonic AS, Lierskogen, Norway
  • IEC 61672 Class 1 — highest accuracy class for professional and regulatory acoustic measurement
  • International type approvals — PTB (Germany) and LNE (France); accepted by environmental authorities across the region
  • 3-year manufacturer warranty — covers parts and labour; Norsonic Asia authorized service center support throughout the region
  • Open data formats — .nox files work with NorReview and can be exported to CSV, Excel, and third-party analysis software

Calibration and Compliance

  • All Norsonic instruments require periodic IEC 61672-3 calibration — Norsonic Asia provides factory-authorized calibration services with full DANAK-traceable certificates
  • Calibration interval: 1 year for ISO 17025 accredited laboratories; 2 years for field instruments in non-accredited applications
  • Field calibration check: use an IEC 60942 Class 1 sound calibrator (94 dB or 114 dB) before and after each measurement session
  • Loaner instruments available during calibration to minimize project downtime — contact Norsonic Asia for loaner availability

Availability & Regional Support

Available from Norsonic Asia — the factory-authorized distributor for ASEAN, GCC, and South Asia. Instrument supply includes 3-year manufacturer warranty, factory-authorized calibration services, operator training, and after-sales technical support.

  • Typical lead time: 3–6 weeks from order confirmation (ex-factory Norway)
  • Countries served: Singapore, Malaysia, Thailand, Vietnam, Philippines, Indonesia, UAE, Saudi Arabia, Qatar, Kuwait, India, Bangladesh, Sri Lanka, and more
  • Technical support: English and Arabic; response within 1 business day
