Nor850 Building Acoustics (ISO 16283)

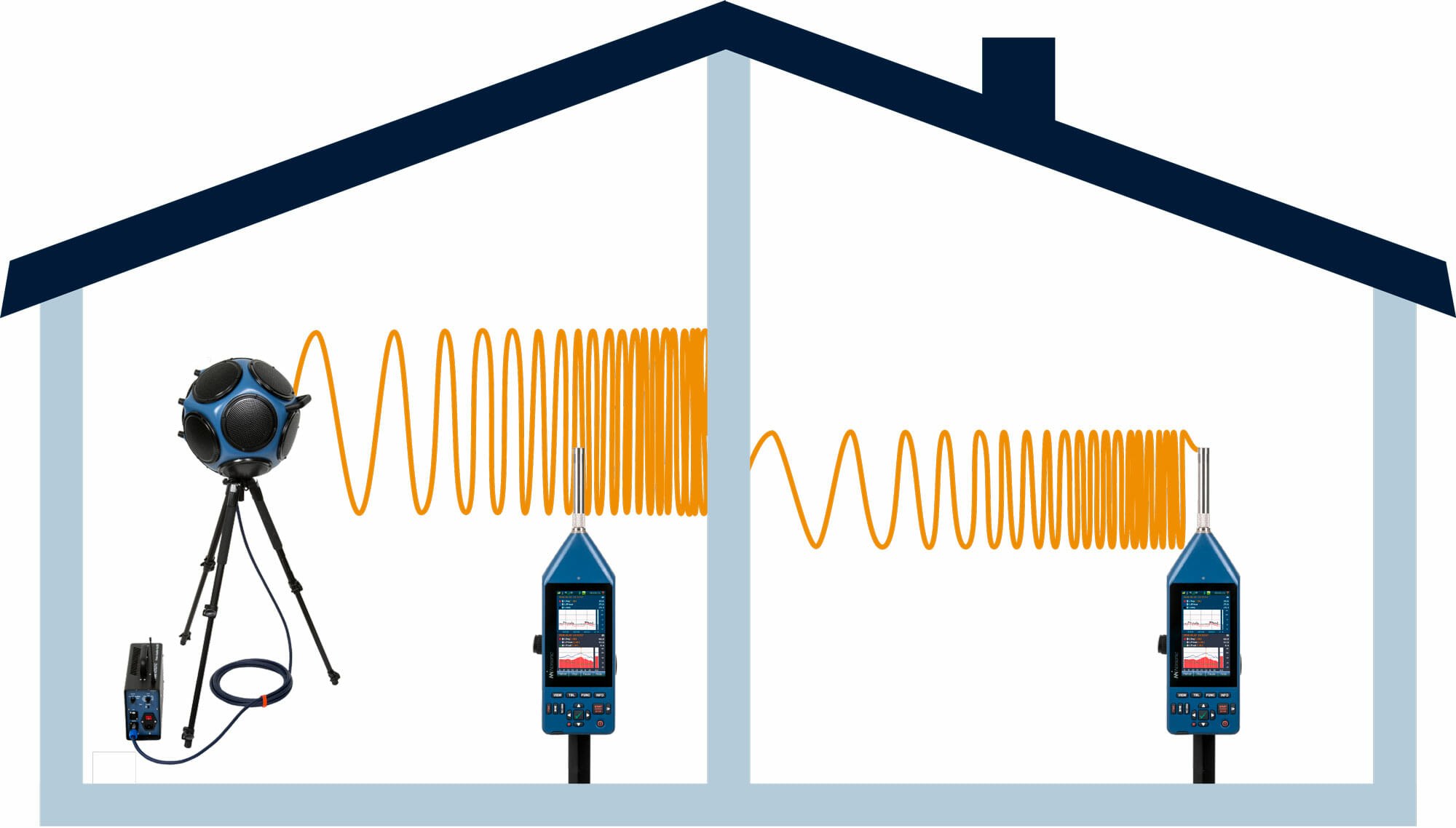

The Nor850 Building Acoustics ISO 16283 module is a specialized add-on for the Nor850 Reporting Software platform, providing comprehensive analysis and reporting for field building acoustics measurements. The module covers all three parts of ISO 16283: airborne sound insulation (Part 1), impact sound insulation (Part 2), and facade sound insulation (Part 3), with automated single-number rating calculations per ISO 717. The software processes source and receiver room sound pressure level data along with reverberation time measurements to calculate standardized level differences (DnT,w) for airborne sound, normalized impact sound pressure levels (L'nT,w) for impact sound, and facade sound insulation ratings (Dls,2m,nT,w). Spectrum adaptation terms C and Ctr are calculated automatically per ISO 717, providing low-frequency correction values increasingly required by modern building codes and GCC construction specifications. For building acoustics consultants performing pre-completion testing across Vision 2030 developments in Saudi Arabia, UAE, and Qatar, this module dramatically reduces the time from field measurement to delivered report. Measurement data from Nor145 or Nor150 instruments is imported directly, calculations are performed automatically, and professional reports are generated with frequency-dependent charts, single-number ratings, and pass/fail assessments against specified building code requirements. The module also supports background noise correction, low-frequency procedure per ISO 16283-1 Annex A, and flanking transmission assessment tools. Multiple test results can be managed within a single project for efficient documentation of large building testing programs where hundreds of partition, floor, and facade elements must be evaluated and reported.
