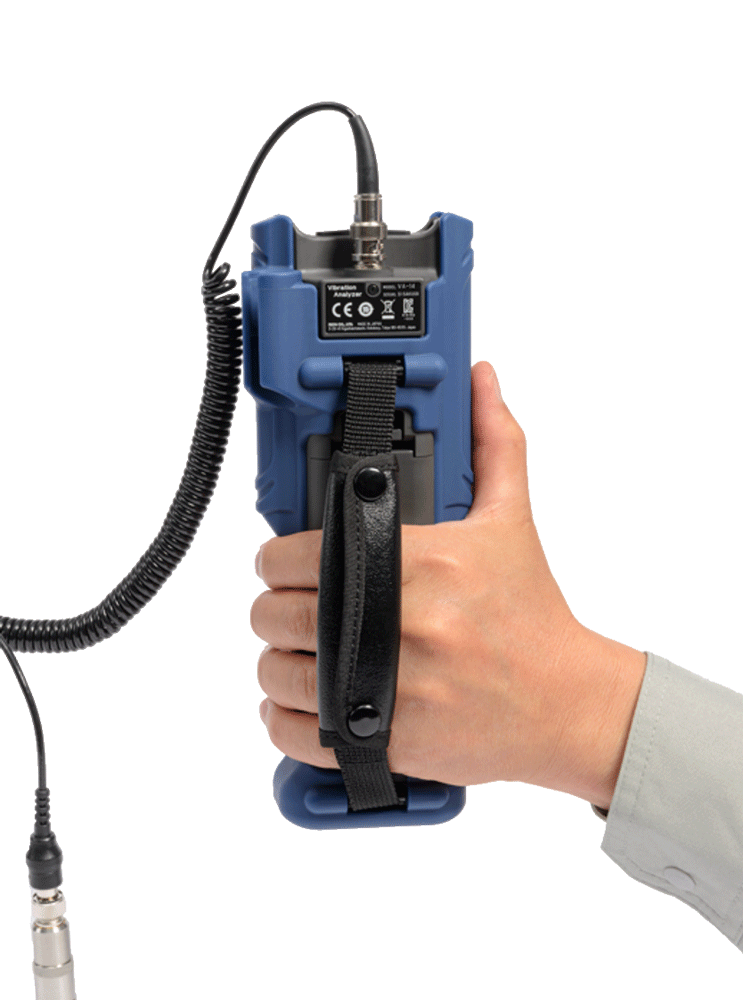

RION VA-14 Vibration Analyzer

RION VA-14 handheld FFT vibration analyzer for machine condition monitoring and predictive maintenance. Measures acceleration, velocity, displacement and crest factor simultaneously, with up to 3,200-line FFT, 110 dB dynamic range and ISO 10816 evaluation.

Overview

The RION VA-14 is a compact, single-channel handheld vibration analyzer built for machine condition monitoring, bearing-fault detection and predictive maintenance on rotating equipment. In Vibration Meter mode it measures acceleration, acceleration peak, crest factor, velocity and displacement simultaneously, so a full picture of machine health is captured in a single measurement. Three measureme…

Key Features

  • Simultaneous measurement of acceleration, acceleration peak, crest factor, velocity and displacement
  • Three modes: Vibration Meter, Time Waveform (with acceleration envelope) and FFT
  • High-resolution FFT up to 3,200 spectral lines, real-time analysis frequency up to 20 kHz
  • TOP10 and PEAK10 functions to auto-identify dominant spectral peaks
  • Wide measurement range up to 110 dB — no manual range switching
  • Bearing-fault detection via acceleration envelope processing
  • ISO 10816-1 vibration-severity evaluation with colour-coded results (VX-14D option)
  • Supplied PV-57I piezoelectric accelerometer, 5.1 mV/(m/s²), with magnet mount

Applications

  • Machine condition monitoring of rotating equipment — motors, pumps, fans, blowers, compressors and gearboxes
  • Predictive and preventive maintenance route measurements
  • Rolling-element bearing fault detection using envelope and FFT analysis
  • ISO 10816 vibration-severity assessment and acceptance testing
  • Diagnosis of imbalance, misalignment, mechanical looseness and resonance
  • Gear-mesh and drivetrain fault analysis

Technical Specifications

  • Model: VA-14
  • Manufacturer: Rion Co., Ltd.
  • Type: Handheld single-channel FFT vibration analyzer
  • Measurement Modes: Vibration Meter, Time Waveform, FFT
  • Measured Parameters: Acceleration, acceleration peak, crest factor, velocity, displacement
  • Time Waveform: Acceleration, velocity, displacement and acceleration envelope curves
  • FFT Resolution: Up to 3,200 spectral lines (selectable, e.g. 200–3,200)
  • Real-time Analysis Frequency: Up to 20 kHz
  • FFT Peak Functions: TOP10 (top 10 spectra), PEAK10 (top peaks)
  • Measurement Range: Up to 110 dB
  • Standards: ISO 10816-1 severity evaluation (VX-14D option)
  • Accelerometer (supplied): PV-57I piezoelectric, 5.1 mV/(m/s²), with magnet mount

Frequently Asked Questions

  • What is the RION VA-14 vibration analyzer used for?
    The VA-14 is a handheld single-channel vibration analyzer used for machine condition monitoring, predictive maintenance and fault diagnosis on rotating machinery such as motors, pumps, fans, compressors and gearboxes. It measures overall vibration levels, captures time waveforms and performs FFT frequency analysis to identify faults like imbalance, misalignment, looseness and bearing defects.
  • What does the VA-14 measure?
    In Vibration Meter mode the VA-14 measures acceleration, acceleration peak, crest factor, velocity and displacement simultaneously. Time Waveform mode adds acceleration, velocity and displacement waveforms plus the acceleration envelope curve, and FFT mode provides frequency-spectrum analysis.
  • What FFT resolution and frequency range does the VA-14 offer?
    The VA-14 provides FFT analysis with up to 3,200 spectral lines and a real-time analysis frequency up to 20 kHz. TOP10 and PEAK10 functions automatically list the most significant spectral peaks, making it easy to isolate bearing, gear-mesh and rotational fault frequencies. The measurement range spans up to 110 dB.

Application Guide

The RION VA-14 Vibration Analyzer belongs to the Norsonic Vibration Analyzer range. See the Vibration Analyzer application guide for system configuration, compatible accessories, and applicable measurement standards.

Related Norsonic Products

Why Norsonic?

  • Manufactured in Norway — decades of acoustic measurement heritage; all instruments designed and built in Norsonic AS, Lierskogen, Norway
  • IEC 61672 Class 1 — highest accuracy class for professional and regulatory acoustic measurement
  • International type approvals — PTB (Germany) and LNE (France); accepted by environmental authorities across the region
  • 3-year manufacturer warranty — covers parts and labour; Norsonic Asia authorized service center support throughout the region
  • Open data formats — .nox files work with NorReview and can be exported to CSV, Excel, and third-party analysis software

Calibration and Compliance

  • All Norsonic instruments require periodic IEC 61672-3 calibration — Norsonic Asia provides factory-authorized calibration services with full DANAK-traceable certificates
  • Calibration interval: 1 year for ISO 17025 accredited laboratories; 2 years for field instruments in non-accredited applications
  • Field calibration check: use an IEC 60942 Class 1 sound calibrator (94 dB or 114 dB) before and after each measurement session
  • Loaner instruments available during calibration to minimize project downtime — contact Norsonic Asia for loaner availability

Availability & Regional Support

Available from Norsonic Asia — the factory-authorized distributor for ASEAN, GCC, and South Asia. Instrument supply includes 3-year manufacturer warranty, factory-authorized calibration services, operator training, and after-sales technical support.

  • Typical lead time: 3–6 weeks from order confirmation (ex-factory Norway)
  • Countries served: Singapore, Malaysia, Thailand, Vietnam, Philippines, Indonesia, UAE, Saudi Arabia, Qatar, Kuwait, India, Bangladesh, Sri Lanka, and more
  • Technical support: English and Arabic; response within 1 business day
