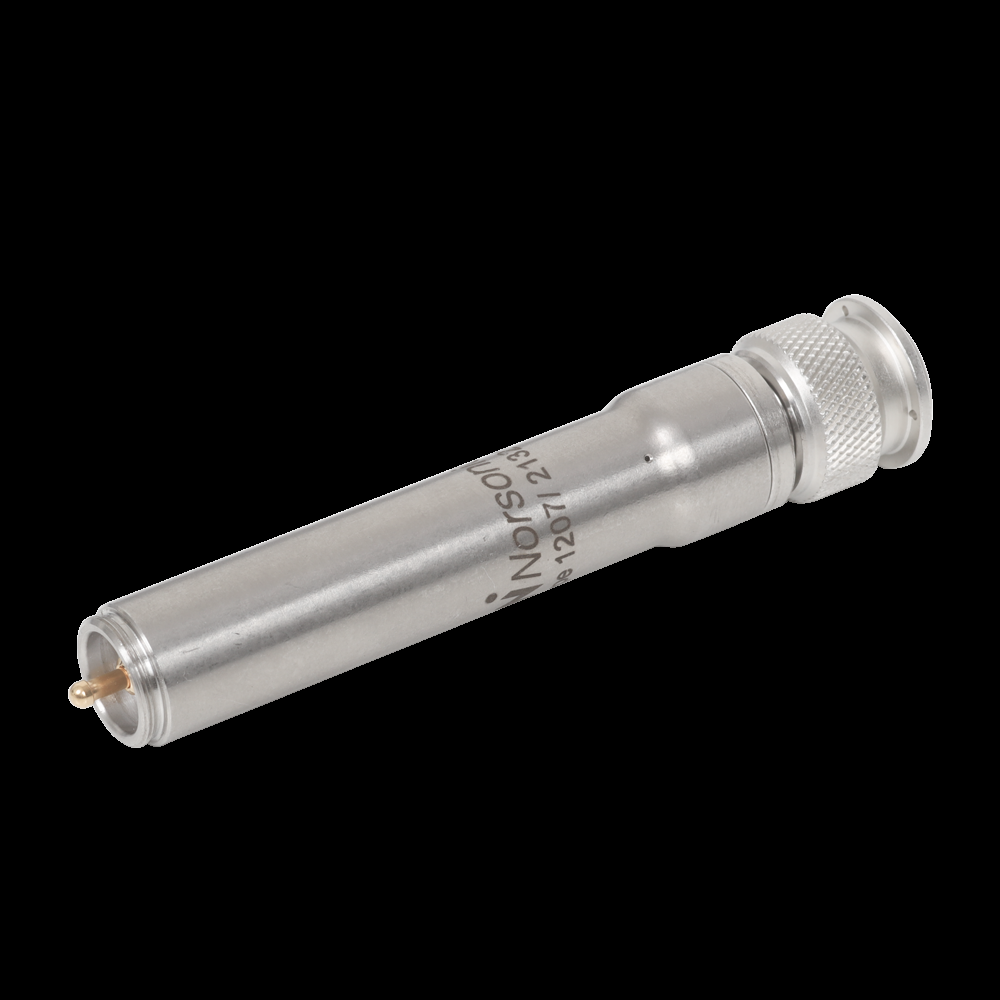

Nor1207 1/2" ICP Microphone Preamplifier

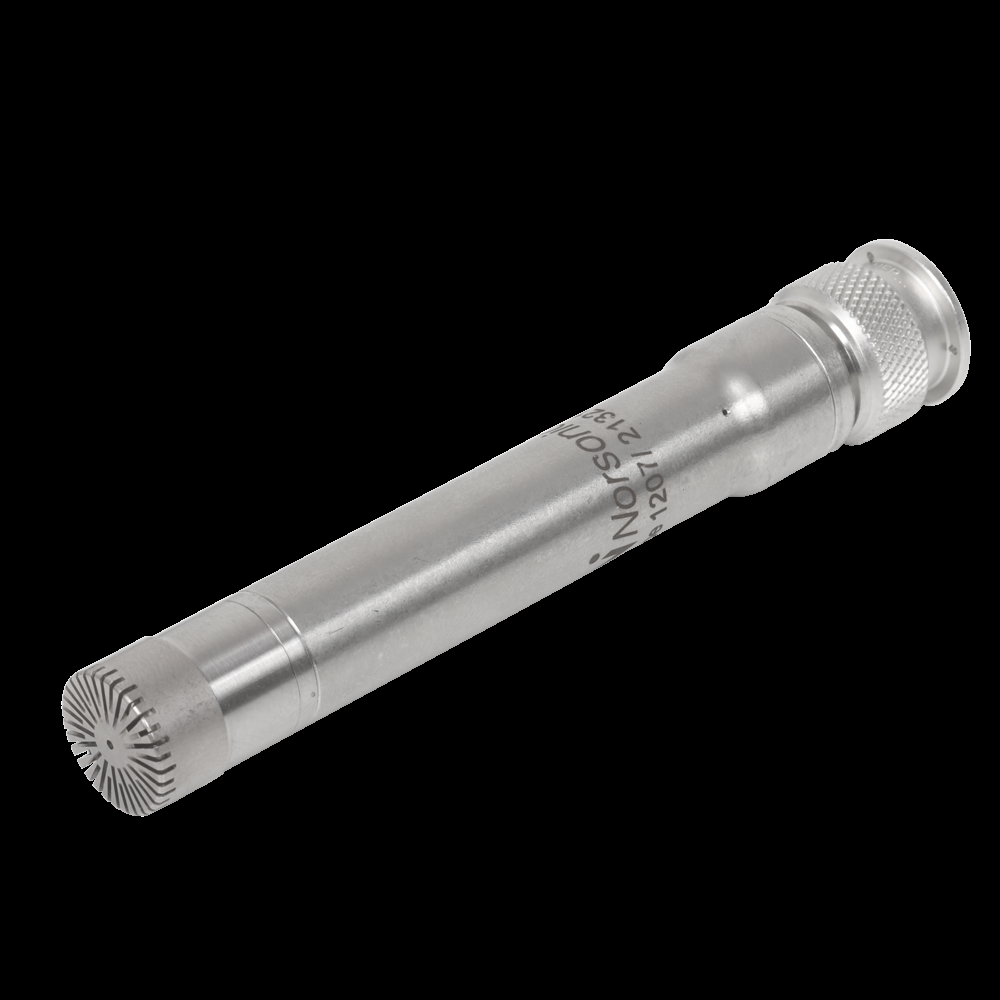

The Nor1207 is a 1/2" ICP (Integrated Circuit Piezoelectric) powered microphone preamplifier that enables Norsonic condenser microphones to be used with ICP/IEPE constant-current powered input channels commonly found on multi-channel data acquisition systems, vibration analysers, and FFT analysers. By converting the high-impedance microphone signal to a low-impedance ICP-compatible output, the Nor1207 bridges the gap between precision condenser measurement microphones and the vast ecosystem of ICP-powered measurement equipment. The preamplifier operates from a standard 2-20 mA constant current supply provided by the ICP input channel, delivering a voltage output proportional to the acoustic pressure at the microphone. This eliminates the need for dedicated microphone power supplies or specialised acoustic front-ends, allowing engineers to integrate high-quality condenser microphones directly into existing multi-channel vibration and noise measurement systems. The wide dynamic range and low noise floor ensure that the microphone performance is not compromised by the preamplifier interface. For industrial facilities, automotive testing laboratories, and research institutions across the GCC, the Nor1207 is invaluable for simultaneous noise and vibration measurements where acoustic channels must share the same data acquisition platform as accelerometer inputs. It enables cost-effective expansion of multi-channel systems with precision acoustic measurement capability, supporting applications from machinery noise diagnostics to environmental noise surveys using standard ICP infrastructure.
